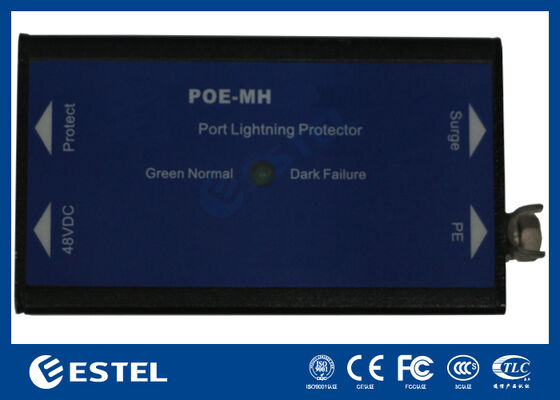

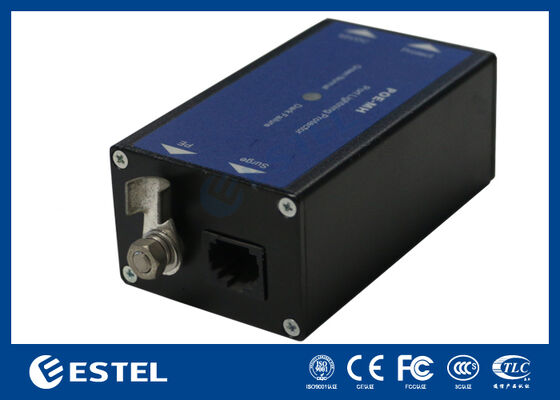

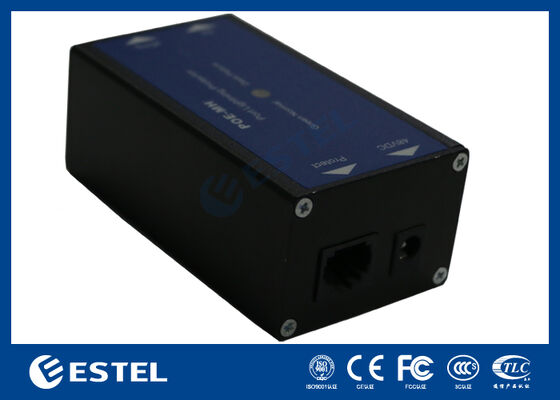

Network RJ45 1000M POE Surge Arrestor In-Line 10/100/1000Mbps Lightni Protector

Network RJ45 1000M POE Surge Arrestor

This Power over Ethernet (PoE) Surge Protector is an essential safeguard for modern, power-over-data-line network infrastructure. It provides robust defense for critical connected devices—such as outdoor wireless access points, bridges, and security cameras—where the Ethernet cable itself becomes a potential pathway for damaging electrical surges.

Engineered for integration into a structured lightning protection system, it is typically installed at the building entry point, acting as a protective boundary between external and internal network zones. Its core function is to intercept and safely dissipate high-energy transients induced by lightning strikes and industrial interference before they can reach and destroy sensitive electronics.

The protector features a sophisticated two-stage defense mechanism. The primary stage handles extreme surge currents with rapid clamping, while a secondary stage offers precise voltage limitation and noise filtration, ensuring both equipment safety and signal integrity. This makes it indispensable for maintaining network reliability in telecommunications, industrial automation, smart transportation, and security applications where uptime is critical.

Key Features:

• Max Transfer Rate: 1000Mbps

• Insertion Loss: ≤0.5dB

• Model: POE-MH

• Interface Type: RJ45

• Retardant Rating: UL94V-0

• Dimensions: 87mm × 50mm × 35mm

Electrical Specifications:
