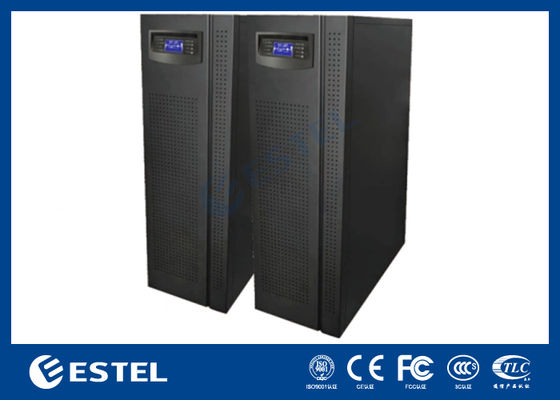

10-40kVA UPS for High Reliability Telecom Power System with Advanced DSP Technology and EPO Function

মৌলিক বৈশিষ্ট্য
উৎপত্তি স্থান: শেনজেন, চীন (মূল ভূখণ্ড)
ব্র্যান্ডের নাম: ESTEL
সার্টিফিকেশন: ISO9001, CE, 3C, FCC, TLC
মডেল নম্বর: 10-40 কেভিএ
বাণিজ্যিক সম্পত্তি
ন্যূনতম অর্ডার পরিমাণ: 1
দাম: 358-2143 usd
পেমেন্ট শর্তাবলী: এল/সি, ডি/এ, ডি/পি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
ট্যাগ

টেলিযোগাযোগ বিদ্যুৎ সরবরাহ ব্যবস্থা

হাইব্রিড এনার্জি টেলিকম পাওয়ার সিস্টেম

টেলিকমিউনিকেশন পাওয়ার সিস্টেম
পণ্যের সারসংক্ষেপ
Uninterruptible Power Supply(UPS) Product Overview ESTEL 10-40kVA UPS series adopts advanced DSP digital control technology,it provides strong adaptability and supports flexible configuration,which fully meets the high reliability requirements of computer room servers and precision equipment. ...

পণ্যের বিবরণ

বিশেষভাবে তুলে ধরা:

10-40kVA telecom UPS system

,

high reliability UPS with EPO

,

telecom power system with DSP
Input Mode: 3-ফেজ, 4-তার+জিএনডি
Rated Voltage: 380/400/415VAC
Frequency Range: 50Hz সিস্টেম: 46-54Hz; 60Hz সিস্টেম: 56-64Hz
Power Factor: 0.99@100% লোড
Input Current Harmonic: ≤3%(100%অ-রৈখিক লোড)
Output Mode: 3-ফেজ, 4-তার+জিএনডি
পণ্যের বর্ণনা

Uninterruptible Power Supply(UPS)



Product Overview



ESTEL 10-40kVA UPS series adopts advanced DSP digital control technology,it provides strong adaptability and supports flexible configuration,which fully meets the high reliability requirements of computer room servers and precision equipment.



Product Features

  • Real high-frequency online dual-switching;
  • High-performance by utilizing DSPtechnology;
  • Output power factor up to 0.8;
  • Emergency Power Off (EPO) function;
  • ECO mode for energy-saving;
  • N+X parallel for redundancy;
  • Compatible with 16-20pcs batteries;
  • Charging current is adjustable (0.5-6A) on LCD panel and software;
  • Wide voltage range(110-300VAC) for single-phase mains input;
  • Power factor correction for all inputs of three-phase;
  • Three-stage expandable charging design ensures superior battery performance;
  • Widely used in finance, telecommunications, government, transportation, manufacturing, and education industries.



UPS Capacity 10KL 15KL 20KL 30KL 40KL
Rated Output Capacity 10kVA/8kW 15kVA/12kW 20kVA/16kW 30kVA/24kW 40kVA/32kW







ACInput

 Input Mode 3-Phase,4-Wire+GND
Rated Voltage 380/400/415VAC
Voltage Range
Frequency Range 50Hz system:46-54Hz;60Hz system:56-64Hz
Power Factor 0.99@100%load
Input current harmonic ≤3%(100%non-linear load)







AC Output

 Output Mode 3-Phase,4-Wire+GND
Rated Voltage 380/400/415VAC
Power Factor 0.99@100%load
Voltage Accuracy ±1%
Output Frequency Synchronize with input;Battery mode:50Hz±0.1Hz or 60Hz±0.1Hz;
Peak Load Ratio Max.3:1
Output THD ≤2%@100%linear load;≤5%@100%non-linear load;
Efficiency AC Mode >89% >89% >89% >90% >90%
Battery Mode >86% >88% >88% >89% >89%
Battery Battery Voltage ±192VDC/±216VDC/±240VDC(Optional)
Charging Current 4A 4A 4A 12A 12A
Switch Time
Switch from mains mode to bypass mode:0ms (tracking);
Switch from mains mode to battery mode: 0ms;



Protection

 albi AC Mode 100%-110%:30sec;110%-30%:10sec;>130%:1sec;
Battery Mode 100%-110%:30sec;110%-130%:10sec;>130%:1sec
Emergency Power Off(EPO) Turn off output immediately
Communication USB,RS232,SNMP card(Optional)



Working

Environment

 Working Temperature 0°C to 40°C
Relative Humidity 0-95%(Non condensation)
Storage Temperature -25°C to 55°C
Elevation <1000m

Physical

Feature

 Size(D×W×H)(mm) 570×250×575 570×250×575 570×250×575 780×250×826 780×250×826
Weight(kg) 44 45 63 71 75
