Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System

Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System
Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System

বড় ইমেজ :  Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: ESTEL
সাক্ষ্যদান: CE UL FCC
মডেল নম্বার: ET7565205A-32U-18KW
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1 সেট
মূল্য: 715-4286 usd
প্যাকেজিং বিবরণ: কাঠের কেস
ডেলিভারি সময়: 15-30 দিন
পরিশোধের শর্ত: টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম, ডি/পি, ডি/এ, এল/সি
যোগানের ক্ষমতা: প্রতি মাসে 3000 সেট
বিস্তারিত পণ্যের বর্ণনা
মন্ত্রিপরিষদের মাত্রা: ডাব্লুএক্সডিএক্সএইচ = 750x650x2050 মিমি (কাস্টমাইজ করা যায়) অভ্যন্তরীণ স্থান: 19 '' স্ট্যান্ডার্ড র্যাক, 32 ইউ স্পেস
উপাদান: গ্যালভানাইজড শীট শক্তি ক্ষমতা: 18 কেডব্লিউ
এমপিপিটি মডিউল: 6 পিসি 3 কেডব্লিউ শীতল পদ্ধতি: এয়ার কন্ডিশনার বা জোর করে ফ্যান সিস্টেম
আইপি গ্রেড: আইপি 55 প্যাকেজিং: কাঠের কেস
বিশেষভাবে তুলে ধরা:

Outdoor telecom power cabinet 18kW

,

Telecom power system with solar

,

18kW rectifier system outdoor



Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System



1. Introduction

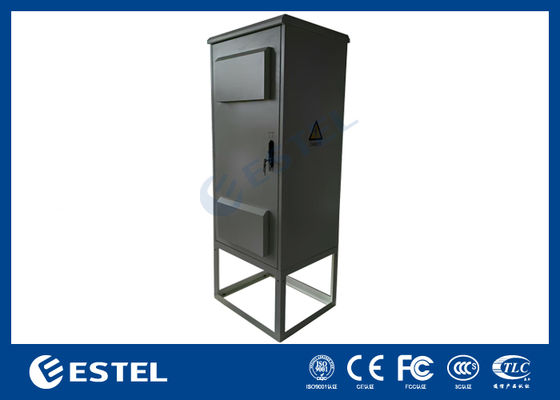

ET7565205A-32U-18kW is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality solar power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.



2. Applications



This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

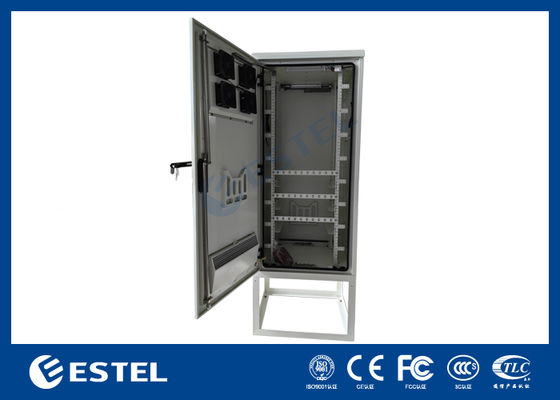

3. Cabinet Features



  • High protection grade: IP55
  • Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
  • Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
  • Support remote management, improve security and minimize customer’s operation cost
  • Highly customizable for: cabinet size, rectifier power system capacity, cooling system configuration, power distribution panel

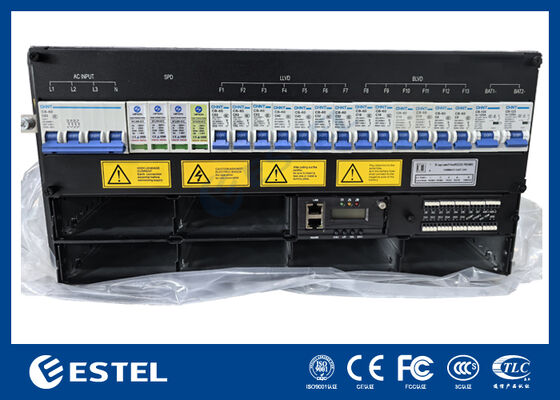

3. Rectifier Power System Features



  • Power system capacity: 18kW, 6 rectifier modules + 1 monitoring module;
  • Power system height: 5 rack units;
  • Rectifier module specification: 3kW
  • Monitoring module: support SNMP;
  • Power distribution:

              - LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P;

              - BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P;



4. Cooling System Features



Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.



5. Technical Parameters



Configuration Item Technical Parameter
Cabinet Model ET7565205A-32U (5U/18kW)
Protection Level IP55
External Dimension H 2050 mm×W 750 mm×D 650 m (Can be customized)
Internal Dimension 19 inch 32U
Material Galvanized steel, 1.2 mm thickness, single wall.
Thickness of bearing parts: 2.0 mm
Insulation 20mm PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance one front door and one rear door
Cooling System Air conditioner 1500W (Optional)
Fan 2pcs fan with one fan controller
Input Voltage AC220V 60Hz
Door sensor Door sensor
Temper sensor Temper sensor

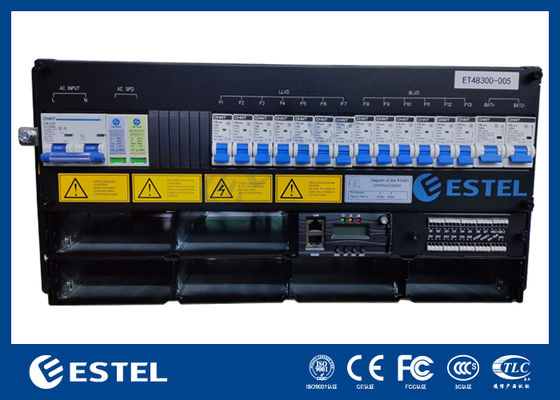

Rectifier system Rectifier system 18kW, 19" rack mount, 5U Rectifier System:
12pcs 3kW rectifier modules
1x Monitoring Controller Module, SNMP communication port
Power distribution:
LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P
BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P
LED Lamp LED lamp for illumination with switch, Voltage: AC220V, 60Hz.
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters
